Sump Floor
BF8
Want to purchase this product?
Get in touch using one of the methods below
This product is DIBt (German Institute for Building Technology) approved, meaning it is tested against important criteria such as capacity and load testing.
Description
Backed by our 3-year guarantee

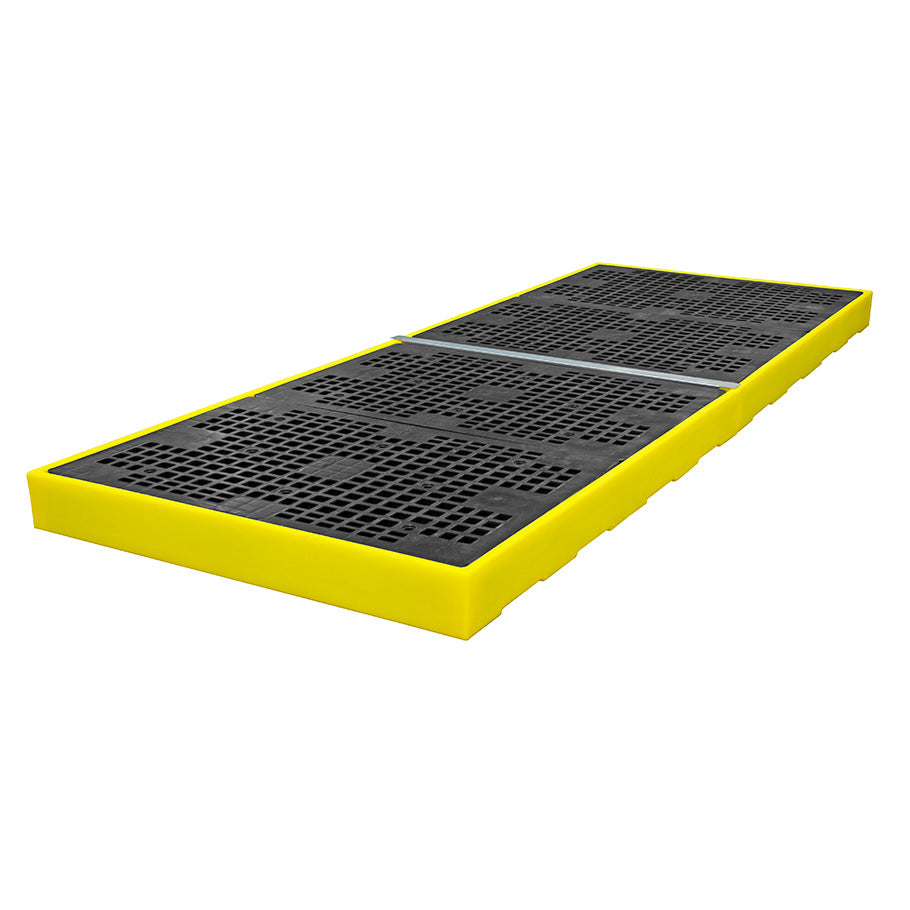

A low profile 8-drum sump floor is only 150mm high moulded from medium-density polyethylene. The BF8 is comprised of 2 separate BF4 units connected using our joining strip & optional sump connector. This can be further joined with other units to create unlimited bunded areas. The units can be joined together with plastic connectors to inter-link the sumps and each injection moulded mesh floor has a 2000kg static weight load. Each unit comes with 2 separate removable grids (4 total). Optional ramps are available for easier decanting.
The sump will not include pre-drilled holes. Please see the ‘BF8 Configuration’ document for instructions.
You will require an appropriate size/capacity fork lift truck to offload this item from the delivery vehicle. Our standard delivery doesn’t include any offloading.
All sumps hold 110% of the capacity of the largest container or 25% of the total capacity stored, whichever is greater.
Specifications
| Length | 3320mm (1660mm each) |
| Width | 1260mm |
| Height | 150mm |
| Weight | 76kg (38kg each) |
| Nº of containers | 8 x 205ltr |
| Sump | 600ltr (300ltr each) |
| UDL | 4000kg (2000kg each) |
| Approval | DIBt Z-40.22-398 |
